Streamline your weighing process with accurate, fast and fully automated SOP-based weighbridge systems.
A robust automation stack focused on safety, accuracy, and real-time compliance.
Vehicle RFID tag is authenticated before entering the weighbridge process.
Sensor-1 detects vehicle presence while the top ANPR camera captures vehicle details.
Sensor-2 and Sensor-3 verify proper truck positioning on the weighbridge.
Weight is captured and processed automatically through the control room software.
Traffic light controls vehicle movement while the front ANPR camera performs validation.
Exit validation completed and vehicle is confirmed for dispatch through eRawanna.
Use these modules individually or as a complete integrated solution.

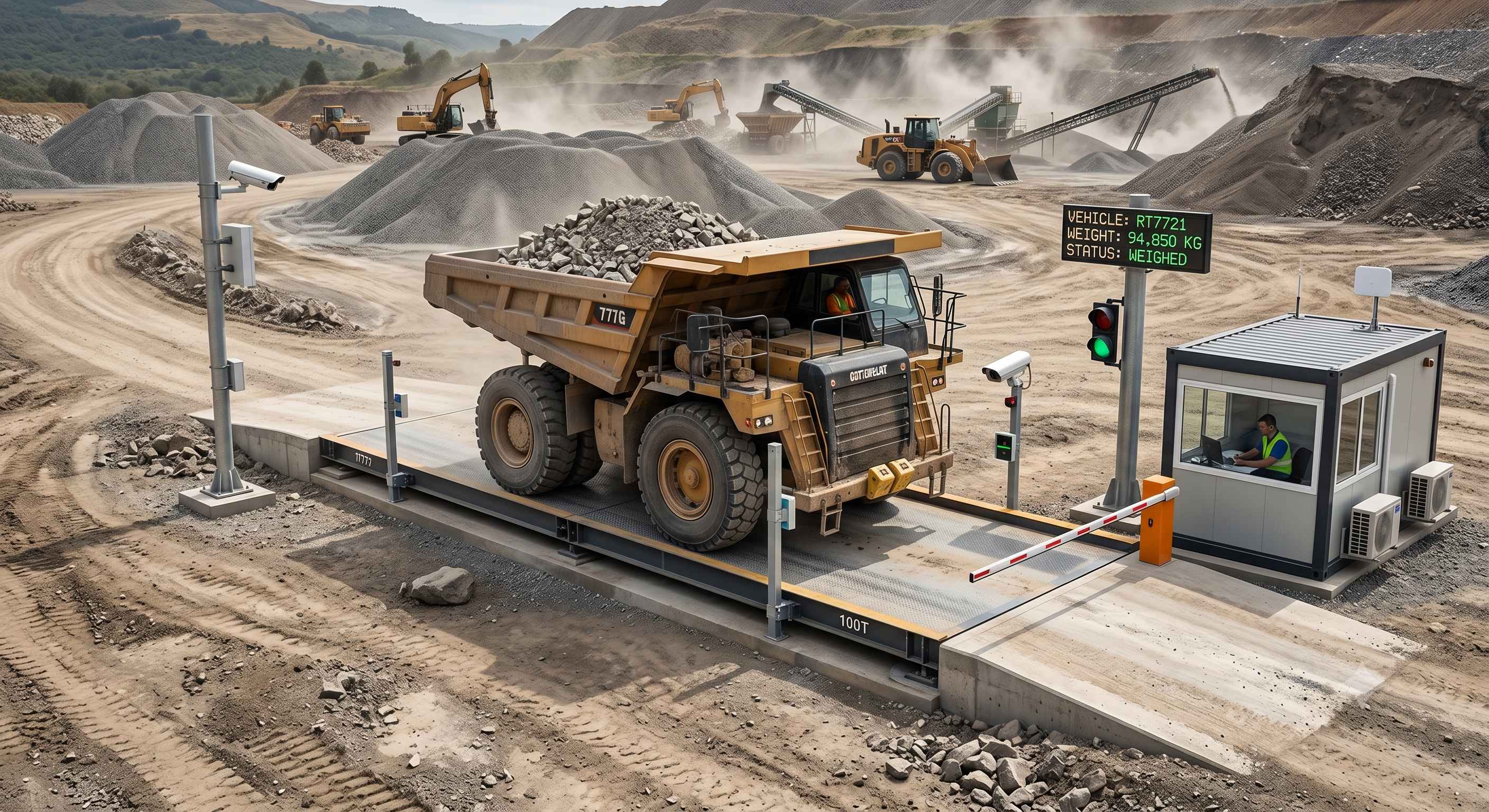

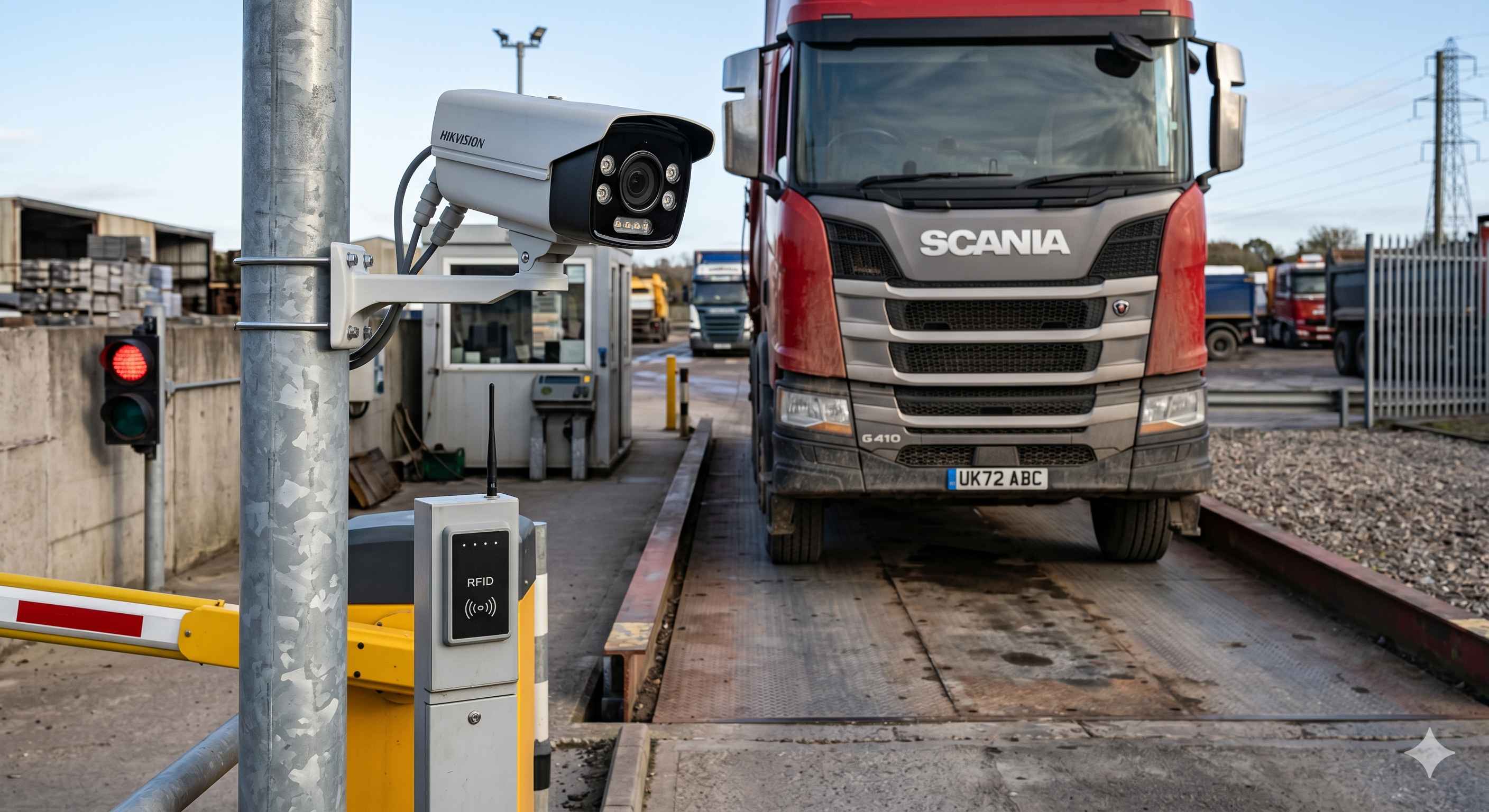

Our Intelligent Weighbridge Management System automates the complete vehicle weighing process by integrating RFID, ANPR cameras, boom barriers, traffic lights, CCTV surveillance, and centralized software into a single platform. The solution eliminates manual intervention, improves weighing accuracy, prevents fraud, ensures SOP compliance, and provides real-time monitoring, reporting, and data analytics for seamless industrial operations.

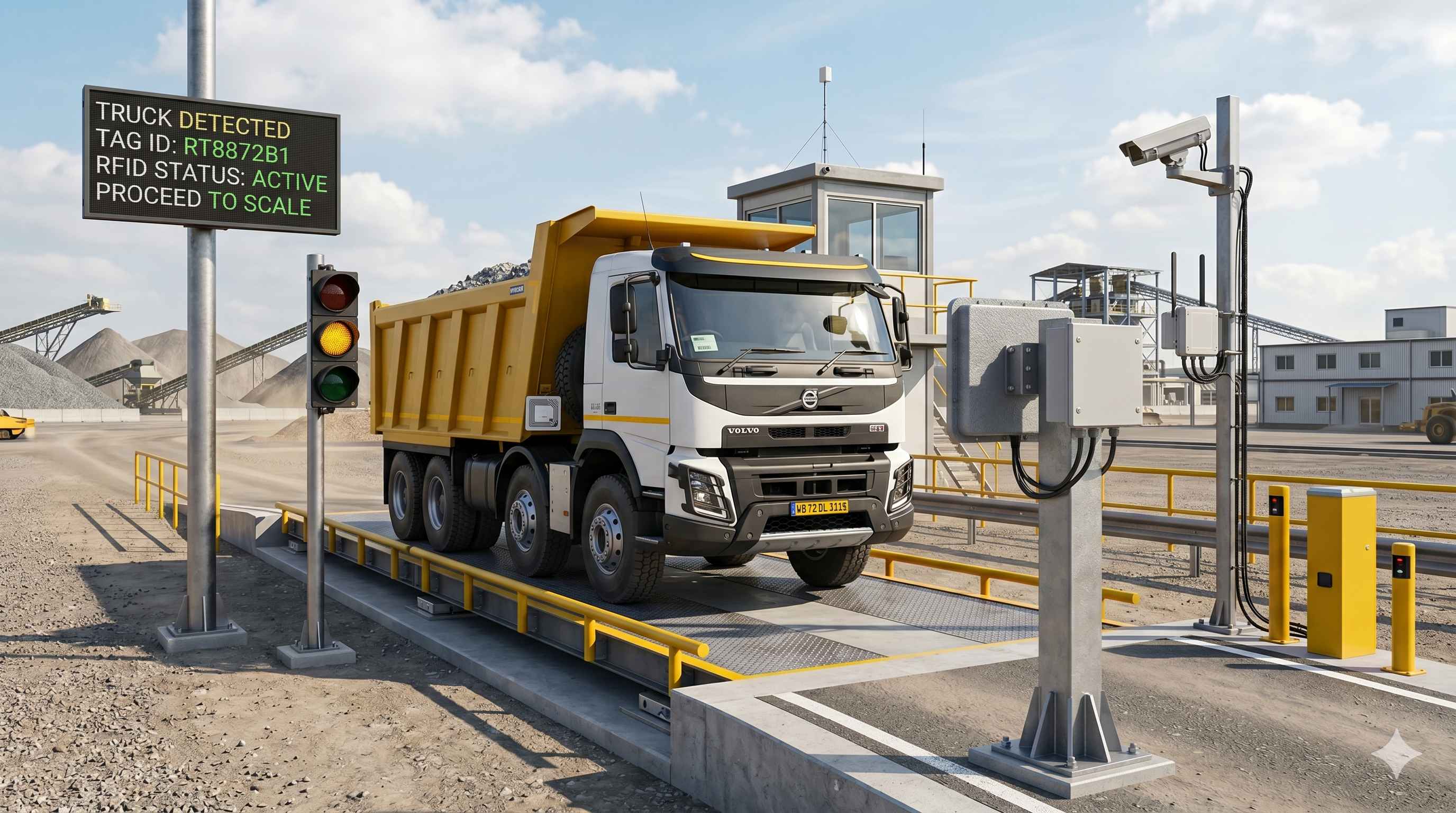

Industrial-grade RFID solution for eRawanna-enabled weighbridge automation, ensuring accurate vehicle identification, automated entry processing, and real-time tracking.
High-performance bullet camera solution for automatic number plate recognition, vehicle monitoring, and seamless integration with eRawanna weighbridge automation systems.
Integrated vehicle access control solution featuring high-visibility LED displays and automated boom barriers for real-time instructions, traffic management, and weighbridge automation.

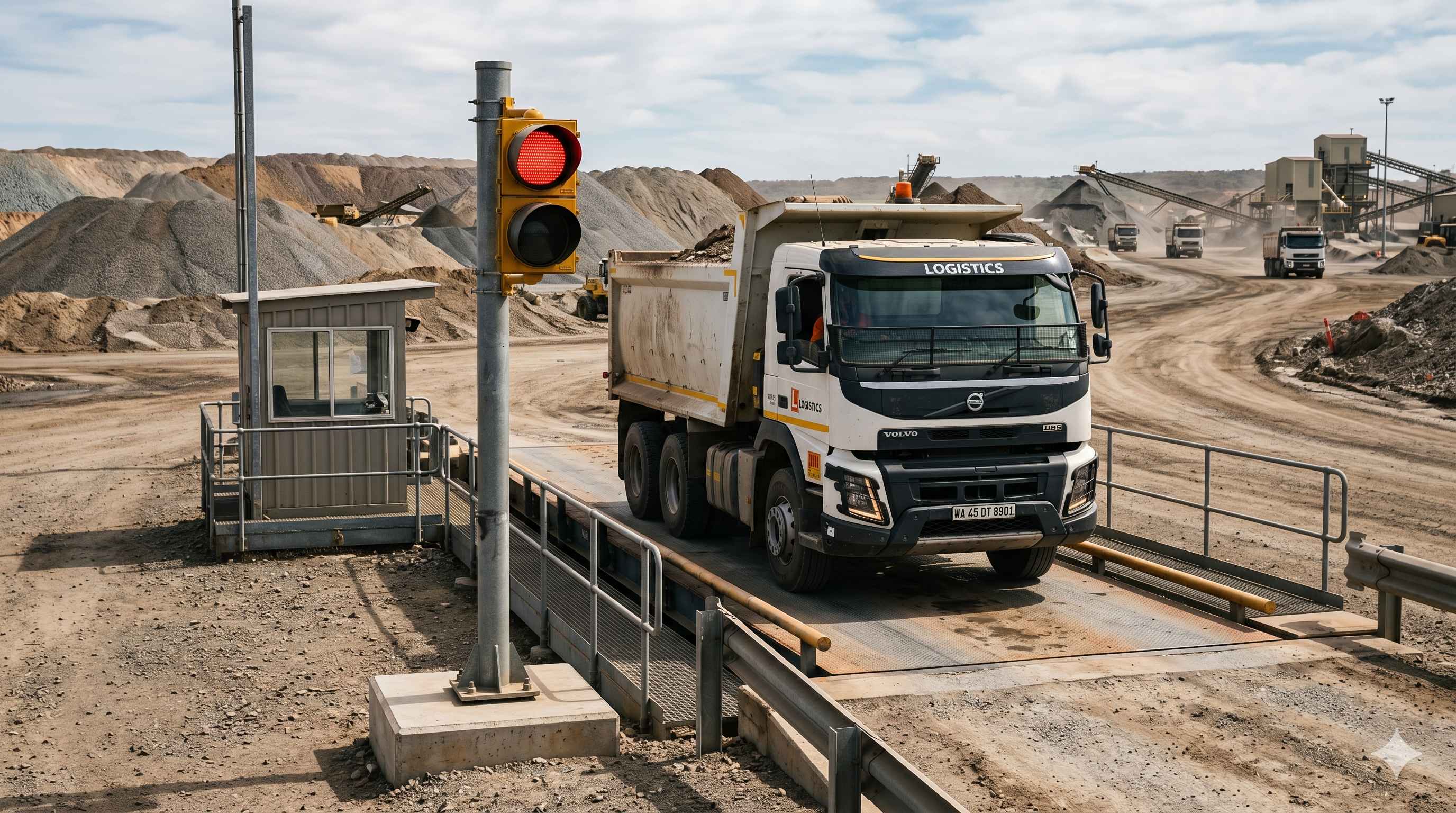

High-visibility red and green LED traffic signal system designed for controlled vehicle movement, automated weighbridge operations, and enhanced entry/exit safety.

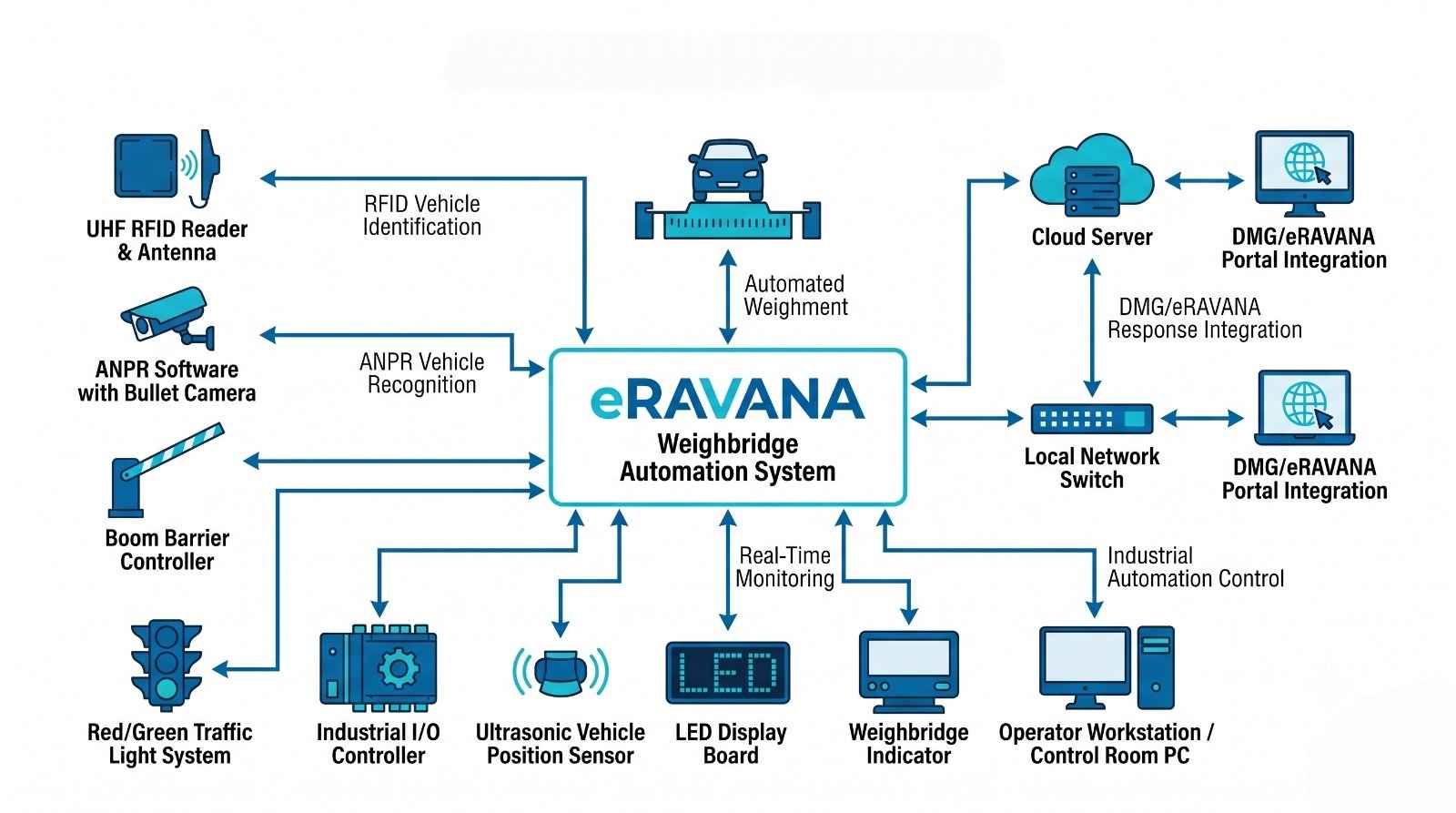

Comprehensive weighbridge automation platform integrating RFID, ANPR, Industrial I/O controllers, safety devices, and DMG/eRawanna portal connectivity for fully automated vehicle processing.

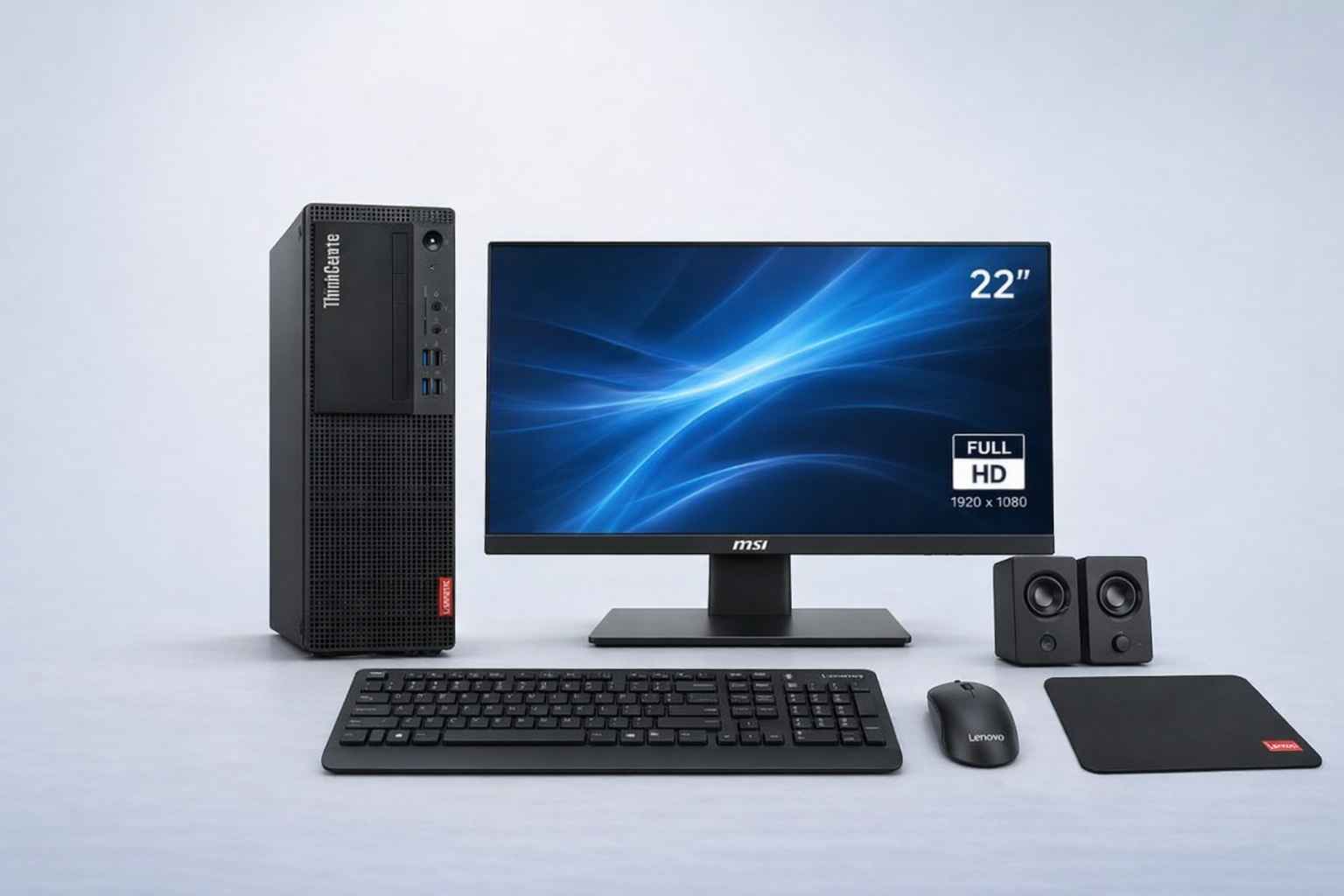

Industrial-grade computer system configured in accordance with DMG guidelines, featuring Intel Core i5 (6-Core) or above processor, 16GB DDR4 RAM, dual SSD storage, Windows 11 Pro, and a 22" Full HD display for reliable weighbridge automation, monitoring, reporting, and control room operations.

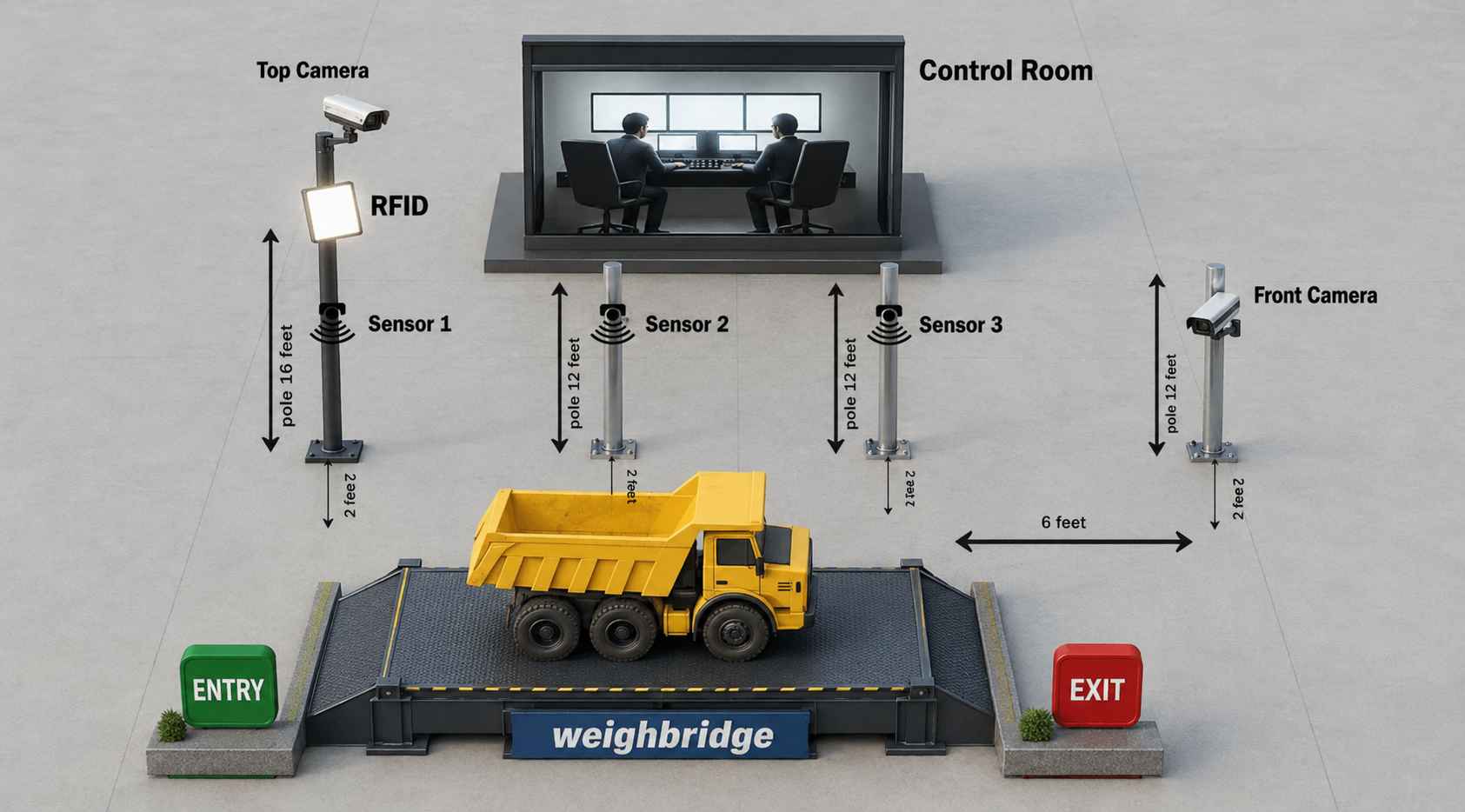

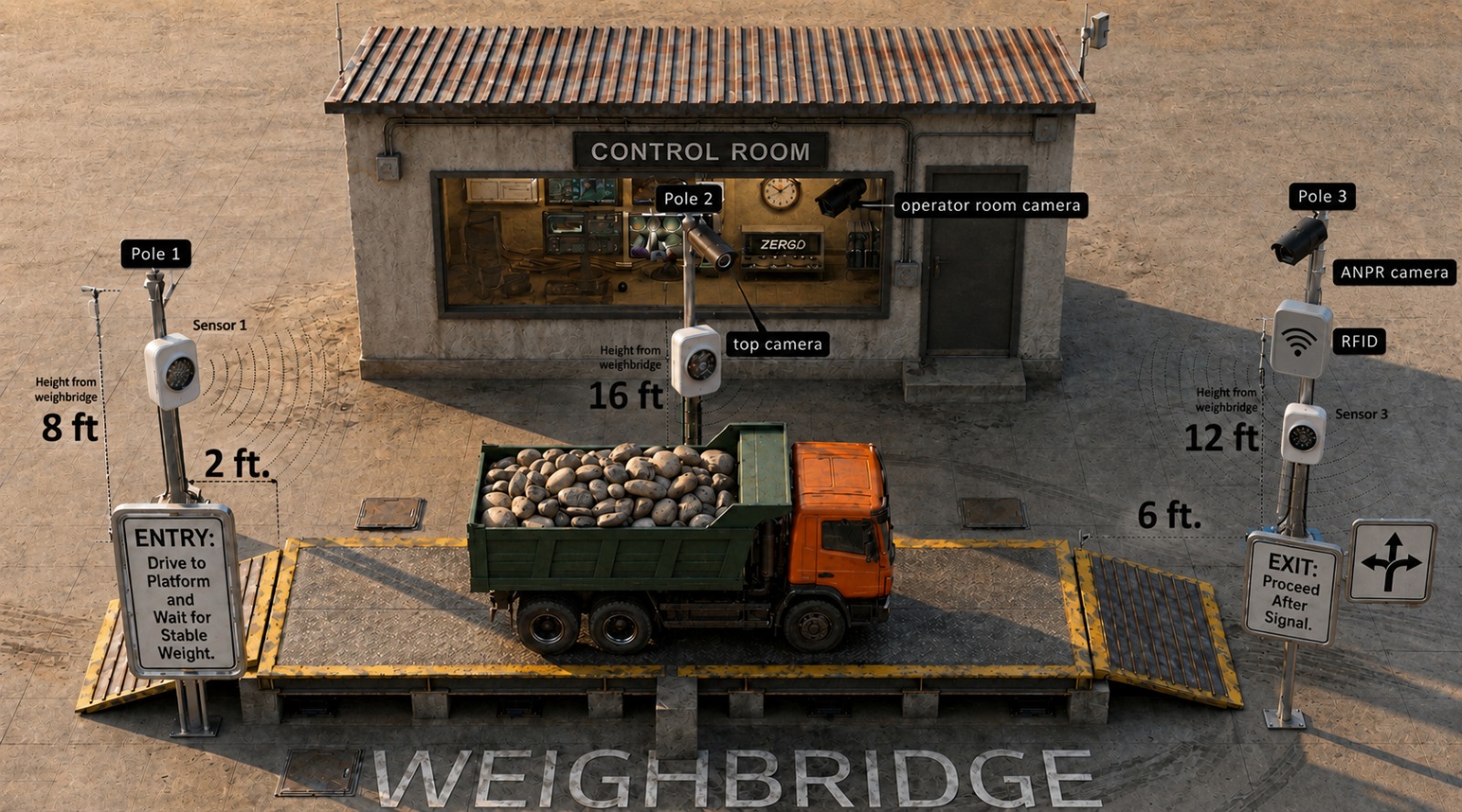

Detailed civil and equipment layout showing RFID readers, ANPR cameras, boom barriers, ultrasonic sensors, traffic lights, LED displays, weighbridge positioning, control room infrastructure, and vehicle movement flow for complete automation deployment.
Weighbridge owners · Rajasthan Mines portal
Process flow
Access suggested vendor list
Visit the Rajasthan-Mines portal and view/download the suggested vendor list.
Vendor selection & order placement
Contact vendor, confirm order, and complete payment.
Device allocation & appointment
Vendor assigns device serial number and schedules installation slot.
Installation & configuration
Install, configure, and integrate with controller and on-site devices.
Data integration & compliance update
Vendor updates portal details; authority verifies and issues Installation Certificate.
Testing & Govt portal integration
Authority/SI tests configuration; successful setup integrates with Govt portal.
Completion & documentation
Receive certificate, warranty, user manual, training & handover documents.
Roles & responsibilities
Weighbridge Owner
Selects vendor, payment, site handover, ensures compliance.
Suggested Vendor
Supplies certified devices, installs, configures, integrates.
Authority
Publishes vendor list, verifies post-installation compliance.
Service level agreement
Included equipment
Core specs for quick customer understanding.
UHF RFID (865-867 MHz)
Read range 3-12 meters. Fast multi-tag reading up to ~200 tags/sec. Ethernet socket communication support.
Verifocal Bullet Camera
High-resolution ANPR camera for automatic vehicle number plate recognition, entry/exit monitoring, and seamless integration with eRawanna weighbridge automation.

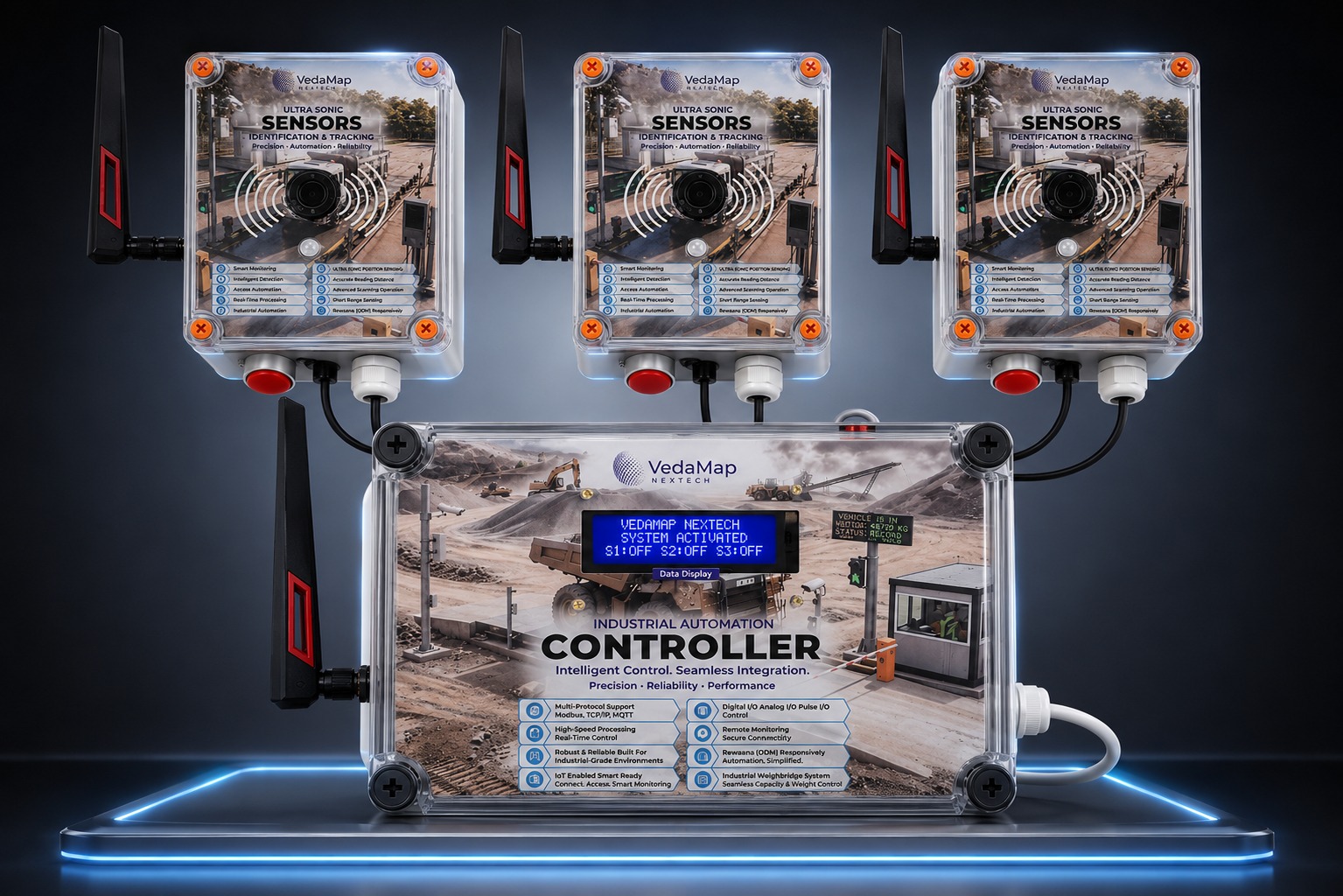

Vehicle Position Detection
Ultrasonic sensing range ~200-4000 mm. IP65 housing. Programmable outputs (PNP, NO/NC).
Industrial I/O Controller
Isolated digital I/O modules with Modbus RTU (RS485) options and 12V relay outputs (DIN rail style).
Outdoor LED Messaging
High brightness, 20m+ visibility. Ethernet communication. MQTT (Type-1) or API (Type-2) integration model.
Traffic + Boom Barrier
Red/Green LED traffic pair. Barrier boom up to 3m with ≤5 sec operation and sensor support.
System capability matrix
eRawanna Network Architecture
RFID • ANPR • POE • Internet
RFID Reader
Router
Internet / Govt Portal
Desktop PC
POE Switch
Camera 02
Camera 01
// Generate RTSP stream URLs for cameras
Share your weighbridge location and existing setup. We'll propose the right automation kit, installation plan, and integration approach.
